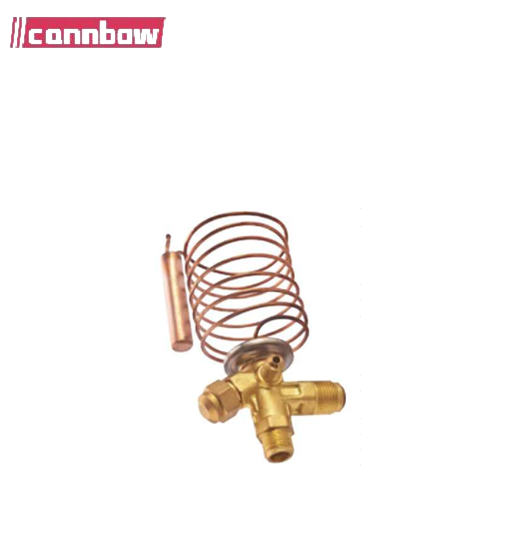

Valve body Danfoss TN 2/TEN 2 068Z3348 (R134a/R513A, without MOP)
- Thermo King
- Description: Valve body Danfoss TN 2/TEN 2 068Z3348 (R134a/R513A, without MOP) with temperature-sensitive element for flanging
-
Angle valve body, 3/8" inlet size, 1/2" outlet size, 1.5m capillary tube length, max. operating pressure 34.0 bar. TE 2, flange/under flange, external alignment versions: alignment line size 1/4 inch / 6 mm.
The valve body is angular with flare fittings.
Refrigerant R134a\R513A.
The diameter of the external alignment line fitting is 1/4" (version with inch fittings) or 6 mm (version with metric fittings).
The length of the capillary tube is 1.5 m.
Maximum operating pressure 34.0 bar.
