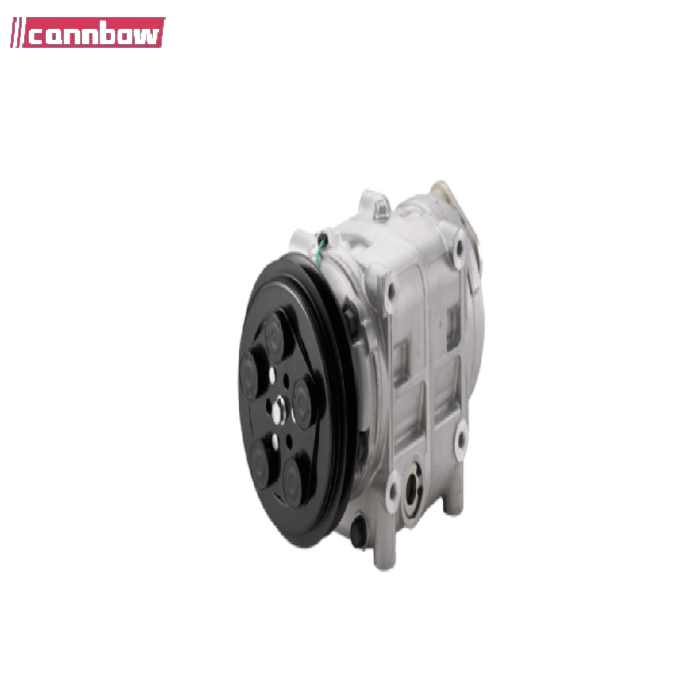

Technical specifications: TM31
- Description: High capacity Heavy Duty compressor
Smooth operation
High efficiency and durability
Optimized lubrication system with oil sight glass
-
Model TM31 (DKS32)
Technology Heavy Duty Swash Plate
Displacement 313 cm³ ⁄ rev
Number of cylinders 10 (5 double-headed pistons)
Revolution range 700 – 6000 rpm
Direction of rotation Clockwise (viewed from clutch)
Bore 36.0 mm
Stroke 30.7 mm
Lubrication system Gear pump
Shaft seal Lip seal type
Oil ZXL100PG PAG OIL (500 cm³)
Weight 9.5 kg (w/o clutch)
Dimensions 278.5 – 143 – 178 mm (w/ clutch)
Mounting Direct (side or base)
