Thermo-King Parts

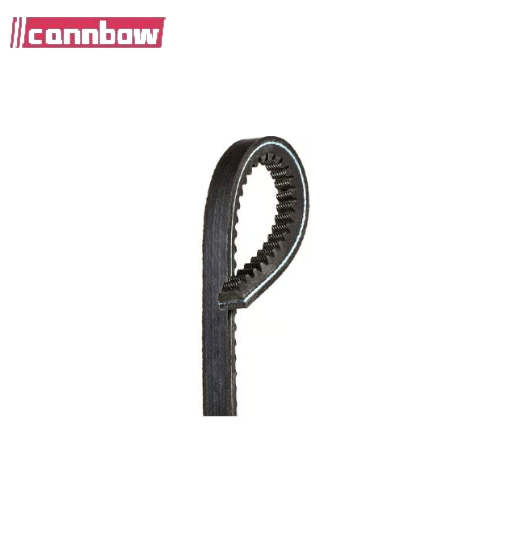

Gates BX78
- Thermo King
- Description: Belt edge is machined for even sheave groove contact,resulting in smoother running, less slip and wear
Flex-bonded cords are strongly forged to the belt body,resulting in equal load distribution and
-
intended for aircraft use.
Angle
40, 40
Belt Back Side
Smooth, Smooth
Belt Category
Classical Series - Inch, Classical Series - Inch
Belt Inside
Notched, Notched
Belt Style
TRI-POWER® POWERBAND®
Belt/Slab
Belt
Cogged/Smooth
Cogged, Cogged
Color
Black, Black
Construction
Bandless
Cord Material
Polyester, Polyester
Description
Built for superior performance on heavy-duty classical cross-section drives. The raw edge, Ethylene Elastomer construction and special notch design makes the Tri-Power belt especially suited for small diameter pulleys and back-side idler drives.
Effective Length
80.855 in / 2054 mm
Manufacturer Catalog Number
BX78
Manufacturer Upc Number
072053109481
Material
Ethylene Elastomeric, Ethylene Elastomeric
Maximum Temperature
+250°F / +121 °C
Minimum Temperature
-70°F / -51 °C
Number Of Sections
1
Number of Sides
Single Sided
Operating Temperature Range
-60 to 250 °F
Outside Circumference
81.13 in / 2061 mm
Outside Length
2054 mm
Overall Height
0.4063 in
Package Length
10.3 in
Reinforcing Cord Material
Polyester, Polyester
Resistance Features
Oil Resistant, Oil Resistant
Section
BX
Section Size
BX
Standards Met
RMA
Static Conductive
Yes
Thickness
11 mm
Top Width
0.6563 in - 21/32 in
Trademark
Tri-Power™
Unitset
No
Weight
0.85 lbs
Number Of Strands
1, 1
Nominal Outside Length
81.0000 in - 81 in
Number Of Strands
1
Package Quantity
EACH
Top Width
21/32 in, 21/32 in
