Thermo-King Parts

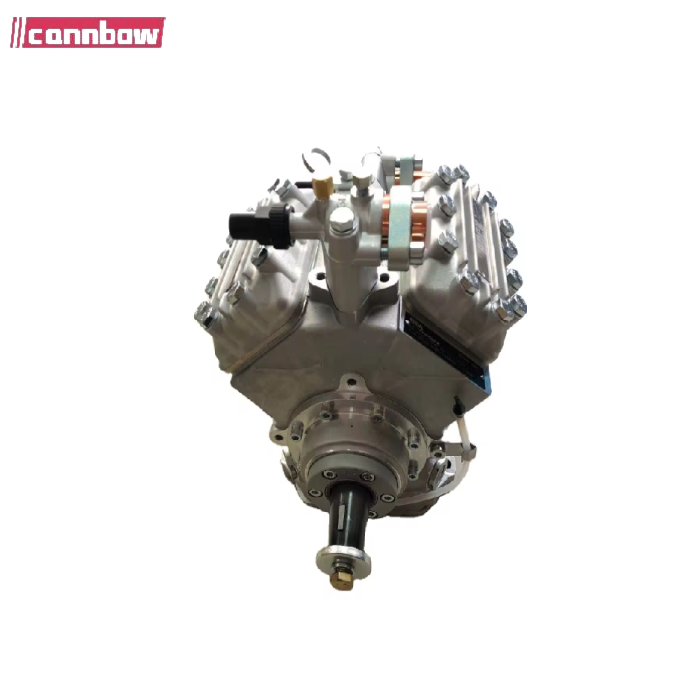

FK40 Series FKX40/560TK compressor
- Thermo King
- Description: • BOCKlub E55 Lubricant.
• Suction and Pressure Shut off Valves.
• Oil Pump.
• Seat front Bearing Flange.
• TK Design.
• Fastening possibility for Electromanetic Clutch.
• 2 x Sight Glasses.
•
-
• Capacity Regulator 24v DC. 1 CR = 50% Residual Capacity.
• Electromagnetic Clutch 24v DC LA 30, Power 39w.
• Flywheel:- OD: 210mm, V-Belt profile: SPA DIN 7753,
• Number of grooves: 3, Weight: 11.6kg.
• Oil sump heater 24v DC, 80w.
• Thermal protection thermostat (bimetal tracer).
• Intermediate Flange (Alter position of shut off valves):-
• 5, 12, 15, 25, 27, 34, 46, 57.5, 62, 71, 75 or 95mm.
